Polymer-based photonic devices

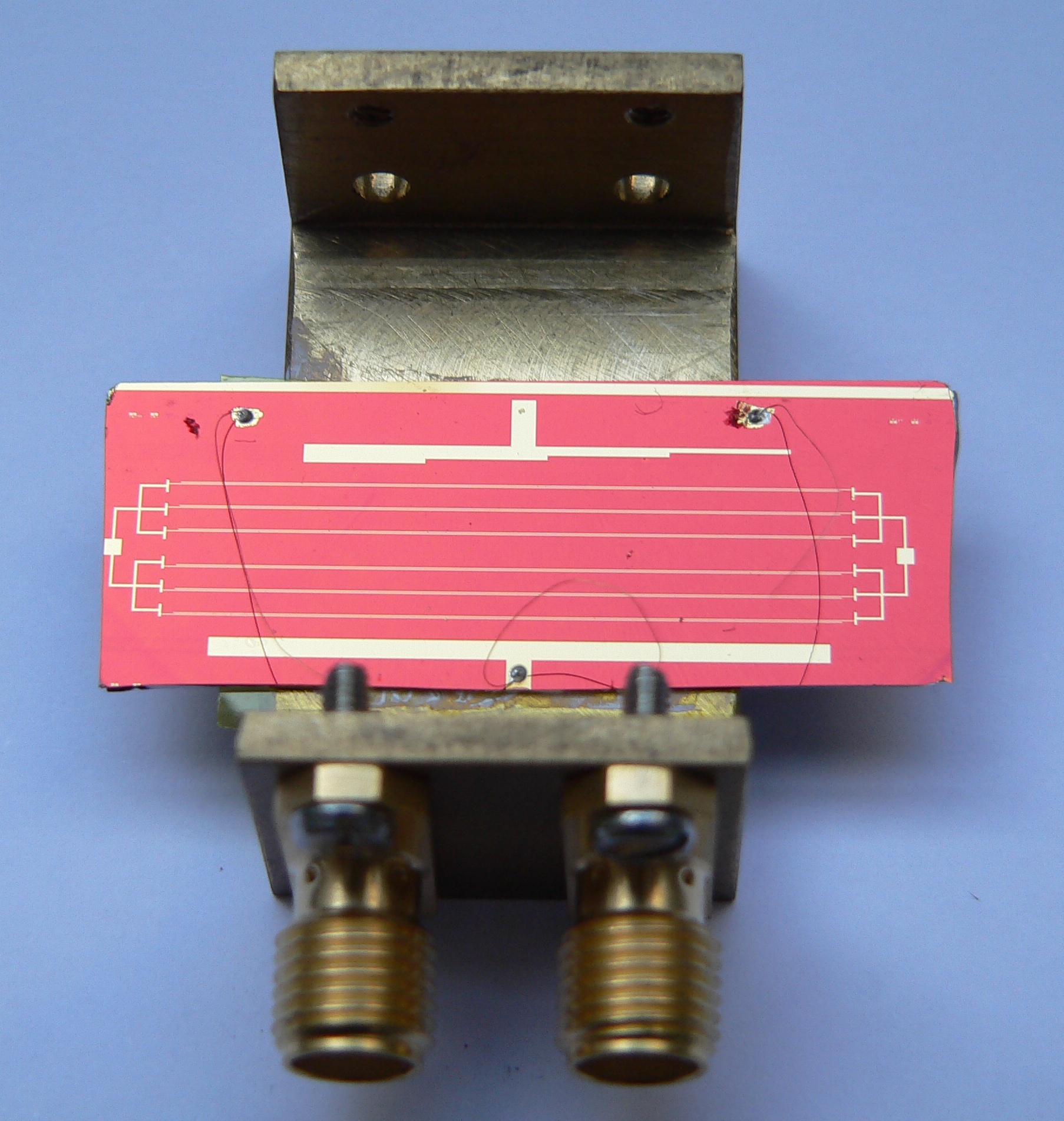

Polymer-based electrooptic modulator

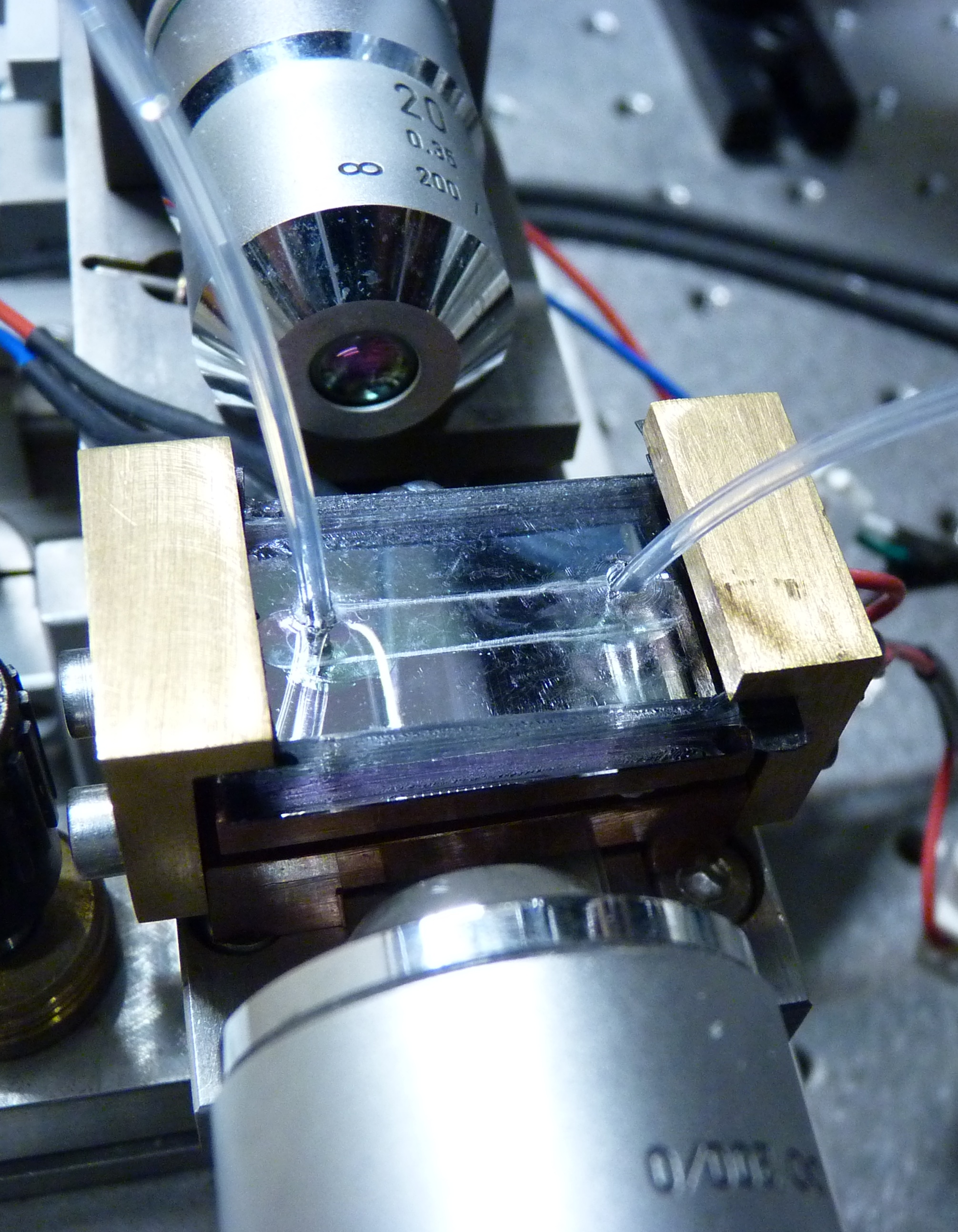

Polymer-based optofluidic sensor



The polymer-based photonic devices characterization bench of the d'Alembert Institute facilities is used to carry out measurements of the optical responses from waveguided photonic devices in the NIR spectral region, using a tunable laser source and InGaAs photodetectors. These polymer-based photonic devices are designed and fabricated for optical communication applications such as polymeric electroptic modulators and for the chemical and biochemical sensing applications such as polymeric optofluidic sensors.


The polymer-based photonic devices characterization bench is situated in an experimental room of 20 m2 in area, equipped with a 180 x 200 cm2 optical table on which there are suitable setups to inject the laser beam into the optical waveguided device under test, and to collect their optical output responses. Experimental measurements are controlled by a computer driven by a specific software for static and dynamic characterizations of photonic devices. In static characterization, for instance, the measurement bench can be used to characterize the spectral responses of optical microresonators in the spectral domain of the tunable laser. But it can be also adapted to carry out the dynamic characterization of active photonic devices such as electrooptic modulators or switches at a fixed wavelength and with a low or high-frequency excitation.
The bench can also be transformed into an optofluidic characterization bench by adding a microfluidic station to the optical setup for realizing the real-time continuous monitoring of an optofluidic sensor.



Realization of a polymer-based optofluidic sensor

"Organic micro-resonators as label-free chemo- and bio-sensors in micro-fluidic environment"

(Projet ANR "MIRODE" (LPQM, LBPA, PPSM) (2011-2015)):




In this project we realized a polymeric optofluidic sensor for the specific detection of either biomolecules in aqueous solutions or heavy-metal ions in drinking water.






Optofluidic sensing experiment


Contacts :


Chi Thanh Nguyen
Tél.: 01 47 40 55 57

Equipments list :



- Anritsu Tunics Plus tunable laser, 1490-1640 nm spectral emitting window with 0 dBm output and 1540-1610 nm window with 8 dBm output.
- InGaAs photodiodes with amplifier, bandwidths 12 MHz and 1.8 GHz.
- NIR vidicon camera Hamamatsu with a Micro-Nikkor objective.
- Leica Binocular.
- Microscope objectives for laser beam injection (x20 and x40).
- Ultralign XYZ microdisplacement with piezoelectric actuators.
- NIR polarizer.
- NIR half-wave plate.
- NIR polarization beam splitter in TE and TM.
- Control system for synchronization of the tunable laser with the acquisition system (hardware and software).
- HP low frequency signal generator 0-20 MHz.

Localisation :

LPQM - Salle 114 b - Bât. d'Alembert
